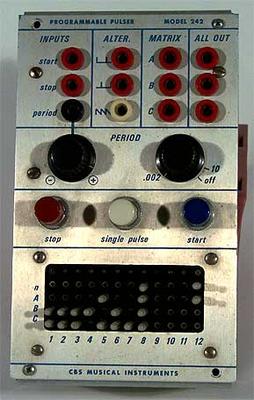

The matrix the top row determines the length of the pulse sequence (1 to 12), with LEDs indicating the active stage. Below are A, B and C rows, each with their own outputs. Inserting a pin results in a pulse being sent to that output. 'Alter' outputs are a constant pulse source (odd and even). There are inputs for start and stop. Also 'period' which controls speed. There is also an independent 'period' knob for setting speed
