Model 106 Mixer

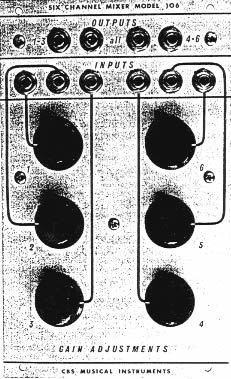

Two 3-channel mixers with both separate and common outputs and level controls for each input.

DIY Resources

Schematics:

Early Hand drawn version (from Pauline Oliveros's copy of 100 Series Manual)

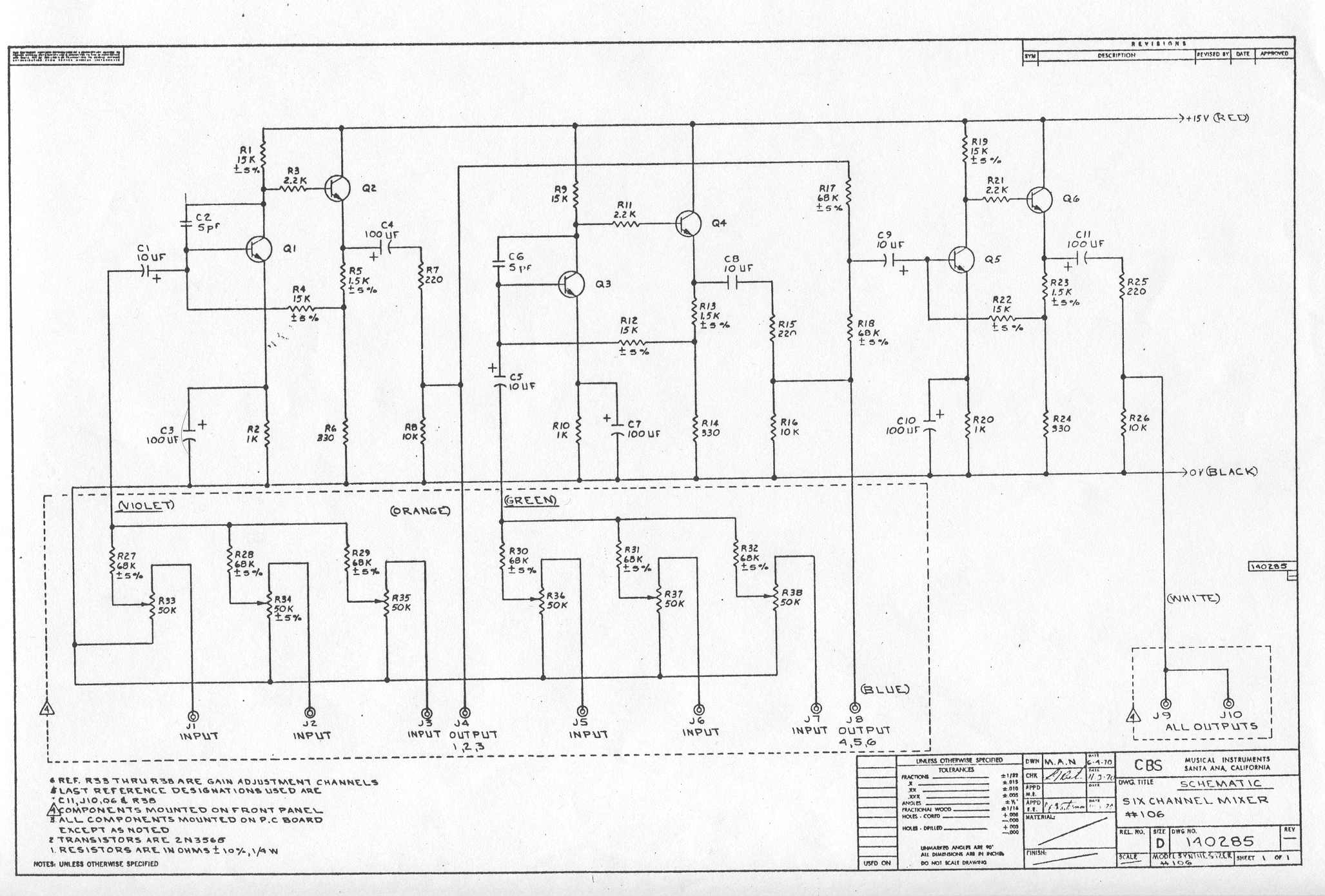

CBS version, 6/4/70 (courtesy of Magnus Danielson)

Builds: Mike Peake's build notes with PCB artwork from his Ebolatone blog.
PCBs
