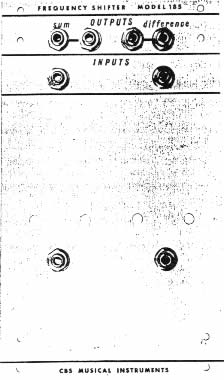

Model 185 Frequency Shifter

Shifts frequencies contained in input signal by an amount equal to the applied carrier frequency. Raised and lowered signals are simultaneously available.

DIY Resources

Schematic
Builds: created by combining two 196 Phase Shifters, one 111 Ring Modulator, and one 185 dual mixer
