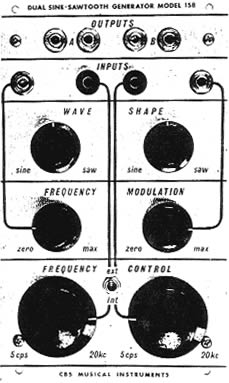

Model 158 Dual Sine-Sawtooth Oscillator

Two independent oscillators in one unit. Frequencies are continuously variable from 5 cps to 20 kc and may be controlled internally or with externally applied control voltages. Waveshape is continuously adjustable from sine to sawtooth; oscillators may be wideband frequency modulated.

DIY Resources

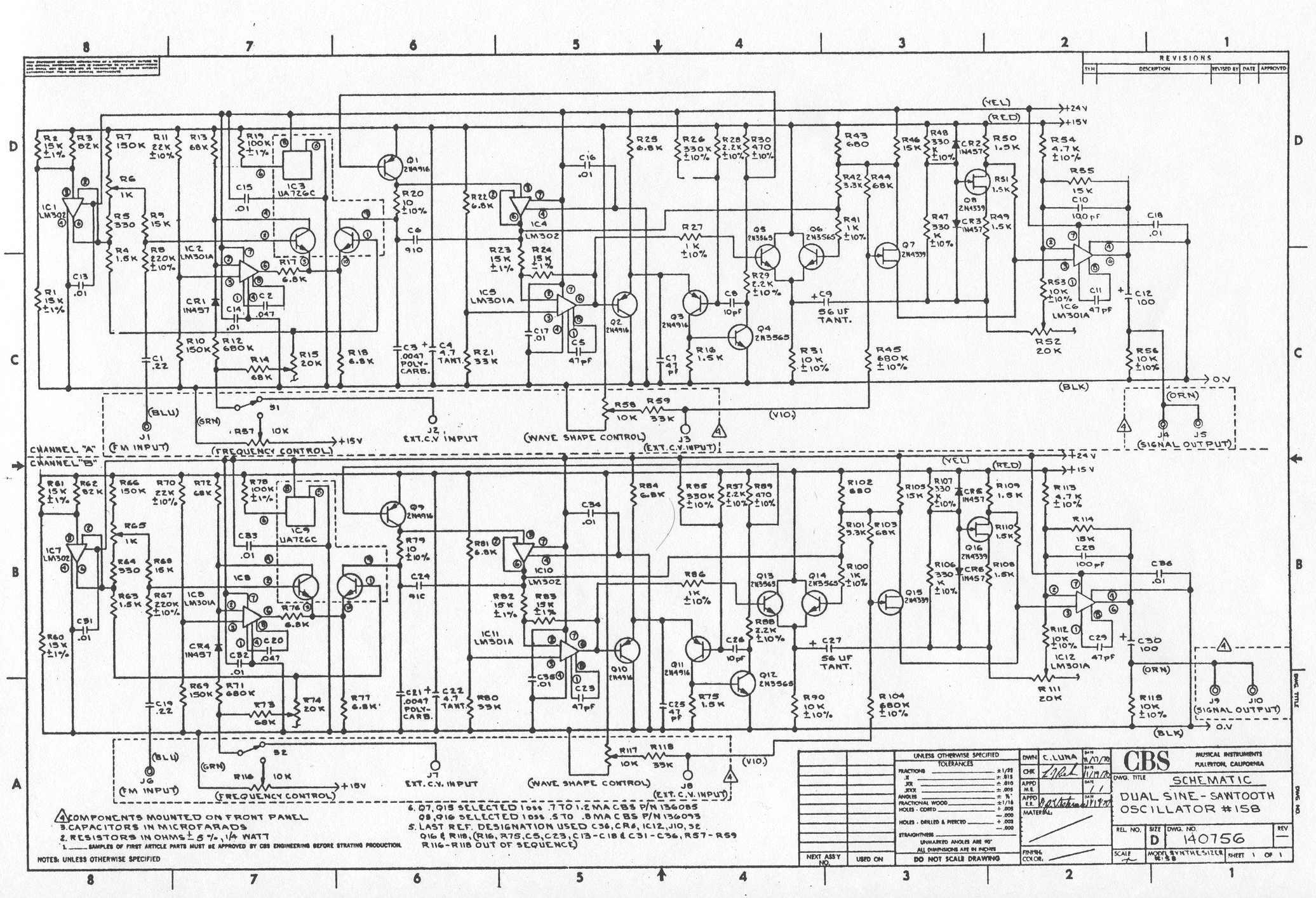

Schematics:

Early Hand drawn version (from Pauline Oliveros's copy of 100 Series Manual)
Rev. A, 4/1/68; all transistor
Rev. B, 11/17/70; uses UA726 transistor/oven (courtesy of Magnus Danielson)

Builds: David Brown's essential build/repair notes; Mike Peake's build notes with PCB artwork from his Ebolatone blog.
PCBs
