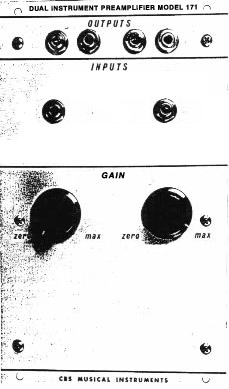

Model 171 Dual Instrument Preamplifier

Two preamplifiers for electric guitars, contact microphones, and other low-level signal sources. Input impedances are 200 k ohms; input connectors are standard phone.
