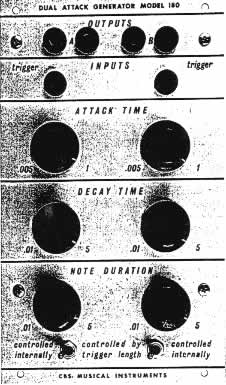

Model 180 Dual Attack Generator

Two independent units produce envelope control voltages initiated by pulses. Attack time is variable from .002 to 1 second; decay time from .002 to 5 seconds; duration from .002 to 5 seconds. Duration may be optionally controlled by trigger pulse length.

DIY Resources

Schematics:

Early Hand drawn version (from Pauline Oliveros's copy of 100 Series Manual)
CBS version, 10/??/70 (courtesy of Magnus Danielson)

Builds
PCBs: I offer Printed circuit boards for this module; its a dual PCB, so only one is required for the standard build. FPD files are also available for making panels.
